Uses the FM-AFM method
Noise in air and liquids is reduced to 1/20th that of existing methods.
Achieves the performance level of...
Noise in air and liquids is reduced to 1/20th that of existing methods.
Achieves the performance level of...
SPM-8100FM
High-Resolution Scanning Probe Microscope
See the Nano World Come to Life
The new HR-SPM scanning probe microscope uses frequency detection.

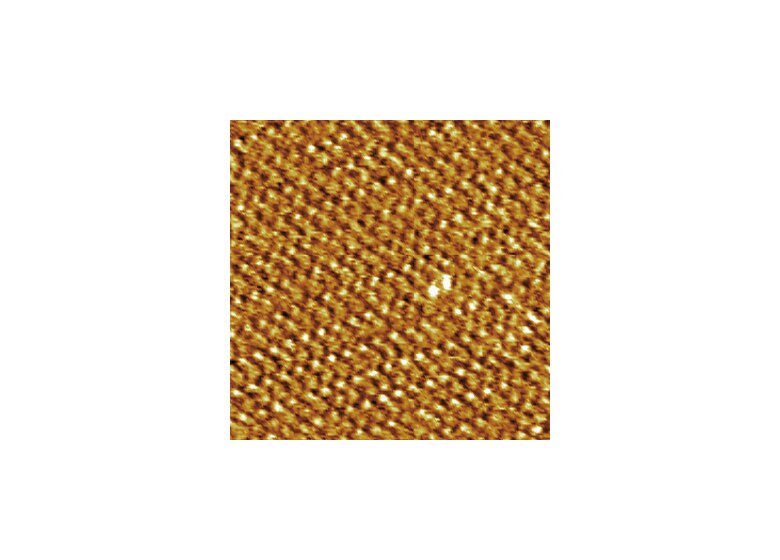

his instrument is not only capable of ultra-high resolution observations in air or liquids, but for the first time enables observations of hydration/solvation layers at solid-liquid interfaces.
Existing SPMs (scanning probe microscopes) and AFMs (atomic force microscopes) generally use AM (amplitude modulation). In principle however, the FM (frequency modulation) measurement method enables higher imaging resolution.
| SPM | ： | Scanning Probe Microscope |
| AFM | ： | Atomic Force Microscope |
| AM | ： | Amplitude Modulation |
| FM | ： | Frequency Modulation |
Características
-
-
The installation of the HT scanner has expanded the observation area and increased speed.

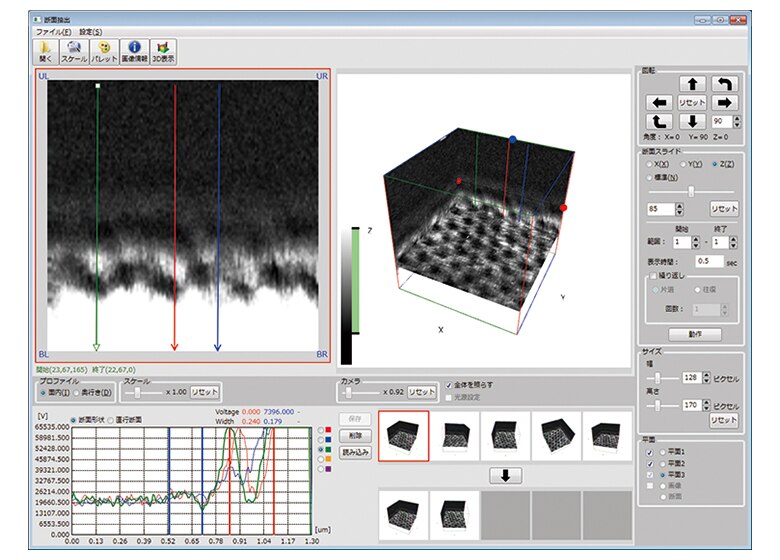

Dual monitors and signal capabiliti... -

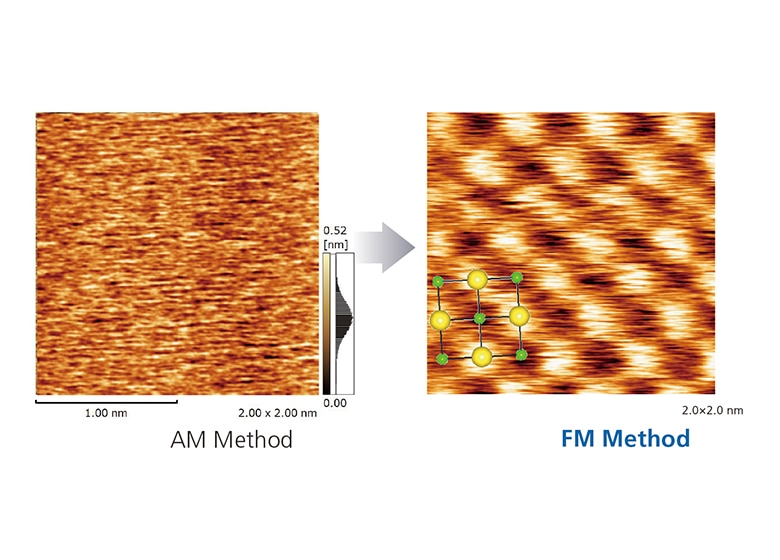

Observations were made of the arrangement of atoms on a NaCl... -

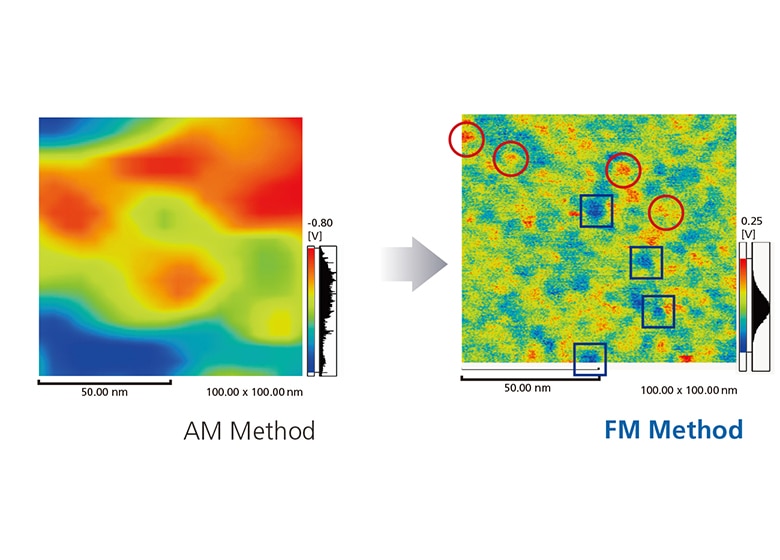

Pt catalyst particles in a TiO2 substrate were identified, and the surface potential was measured using a KPFM.
