ELSD-LT III

Evaporative Light Scattering Detector for HPLC

Add Bookmark

ELSD-LT III
ELSD-LT III

The evaporative light scattering detector (ELSD) is a general-purpose universal detector that can even detect components with no UV absorption, such as carbohydrates, lipids, surfactants, and synthetic polymers.*
With exceptional sensitivity, a wide dynamic range through Analytical Intelligence features, and easy operability using LabSolutions™ software, the ELSD-LT III contributes to more effective analysis in a wide variety of fields.

*Excluding some volatile compounds

Características

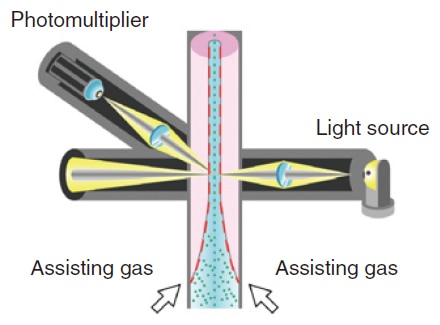

  • Assisting gas focusing
    Unique design achieves universal detection
    ELSDs can detect almost all compounds apart from volatile compounds. They detect irradiated light scattered by microparticles of target components that remain after the mobile phase has evaporated, meaning they can detect the compound which has the poor UV absorption or has that around short-wavelength where is strongly affected by the background absorption of the mobile phase.

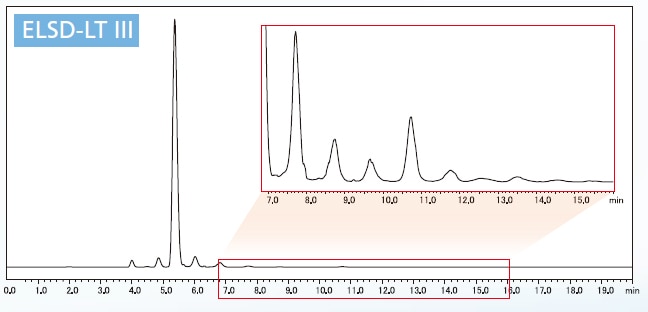

  • High-sensitivity analysis with a laser light source
    High sensitivity and a wide dynamic range
    A high-power laser source offers superior sensitivity not possible with previous ELSD models. The photometricallycontrolled laser ensures that the high sensitivity remains stable over long periods of operation.

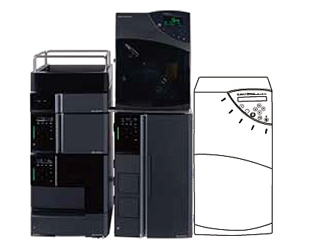

  • Compact design with excellent usability
    Compact design with excellent usability
    The ELSD-LT III boasts a compact design with around 2/3 the height of the previous model, and can be installed on top of the LC unit. The width of the whole system is reduced, saving precious lab space.
