Advanced Flow Technology Series

Contacto

Advanced flow technology is a capillary analysis system implementing chromatographic techniques like backflush, heart cut, and detector switching. It can achieve high efficiency and high separation by improving the efficiency of analysis and accurately separating the target component from the complex original samples. Special software for each system can be downloaded free of charge from Shimadzu official website.

Características

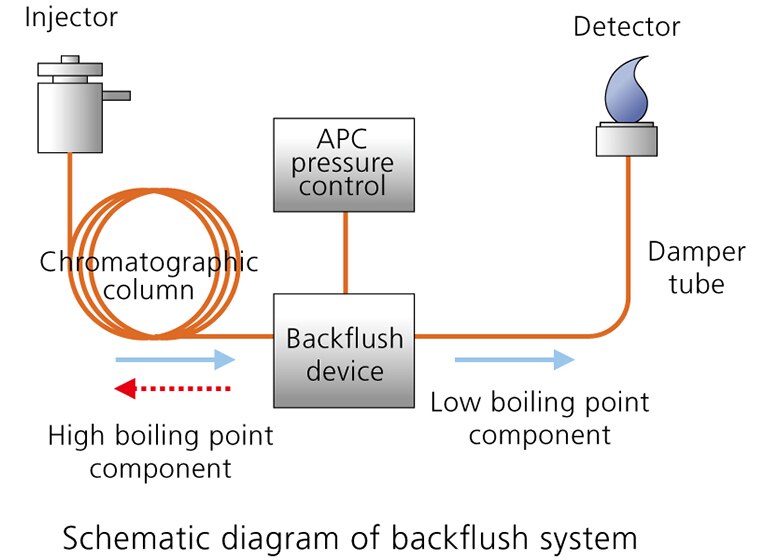

Backflush system

The backflush system reverses the carrier gas flow after the target compounds have eluted, to discharge...

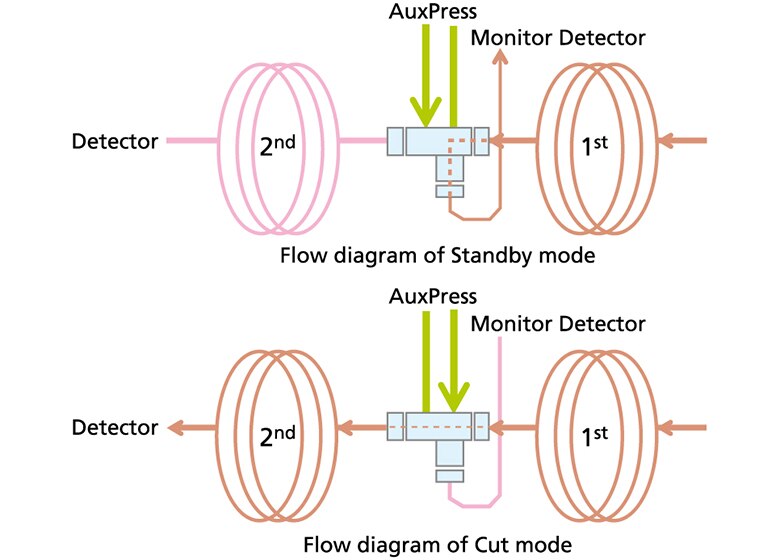

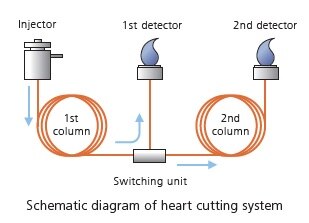

Heart cutting system

The heart cutting system uses two chromatographic columns with different separation characteristics to separate

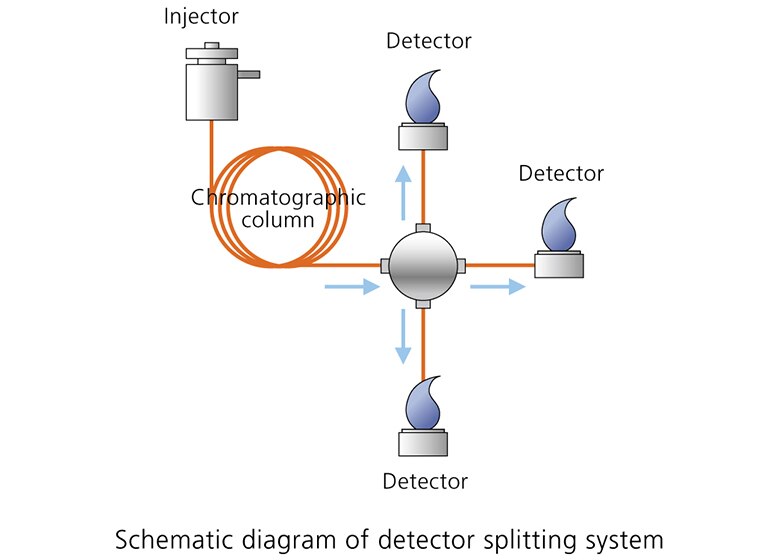

Detector splitting system

Compounds eluting from an analytical column may be split to multiple detectors to obtain multiple...

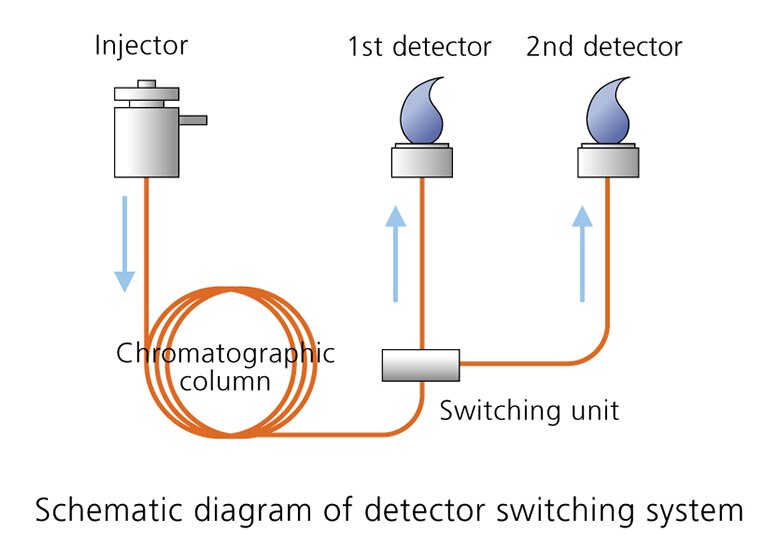

Detector switching system

The detector switching system controls sample introduction through the switching device at the column outlet.
Multi Dimensional Gas Chromatograph Systems

The complete separation and quantification of specific compounds...
